Research Solutions

Clinical Division


STISIM Drive-R for Research Applications

STISIM Drive-R has been developed by STI in close communication with the research community, through over 30 years of technological advances. It has featured in over 1,500 peer-reviewed research papers by independent researchers, across a wide range of studies, demonstrating that the system works.


Benefits

  • Rooted in sound engineering, human factors, and cognitive science principles:​

  • Physics based simulation tool​

  • Events engineered to simulate primary driving challenges​

  • Federal Highway Administration roadway definitions

  • Highly adaptable, flexible, reliable, and affordable

  • Easy operation and maintenance (PC based)

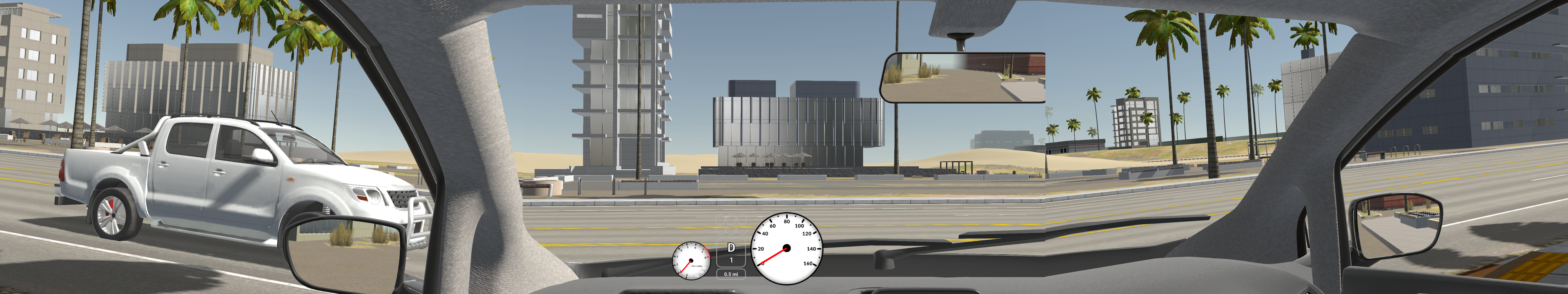

  • Realistic representations of driving real-world situations and hazards while in virtual and safe environment

  • Provides a wide variety of driving environments and critical driving situations

  • Outputs critical data and metrics that meet or exceed client objectives

  • Expandable - add in modules for specific applications or programming


Click here for more information on STISIM Drive-R and its use in research applications.


Which STISIM Drive Solution is best for your research application?

For most domains, our turnkey STISIM Drive Hardware Platforms provide the best value in worry-free installation, training and operation.

Researchers can also create custom implementations by purchasing our Research Suite and assembling their own computer system to run it.

M4000-R

M3000-R

M2000-R

M1000-R

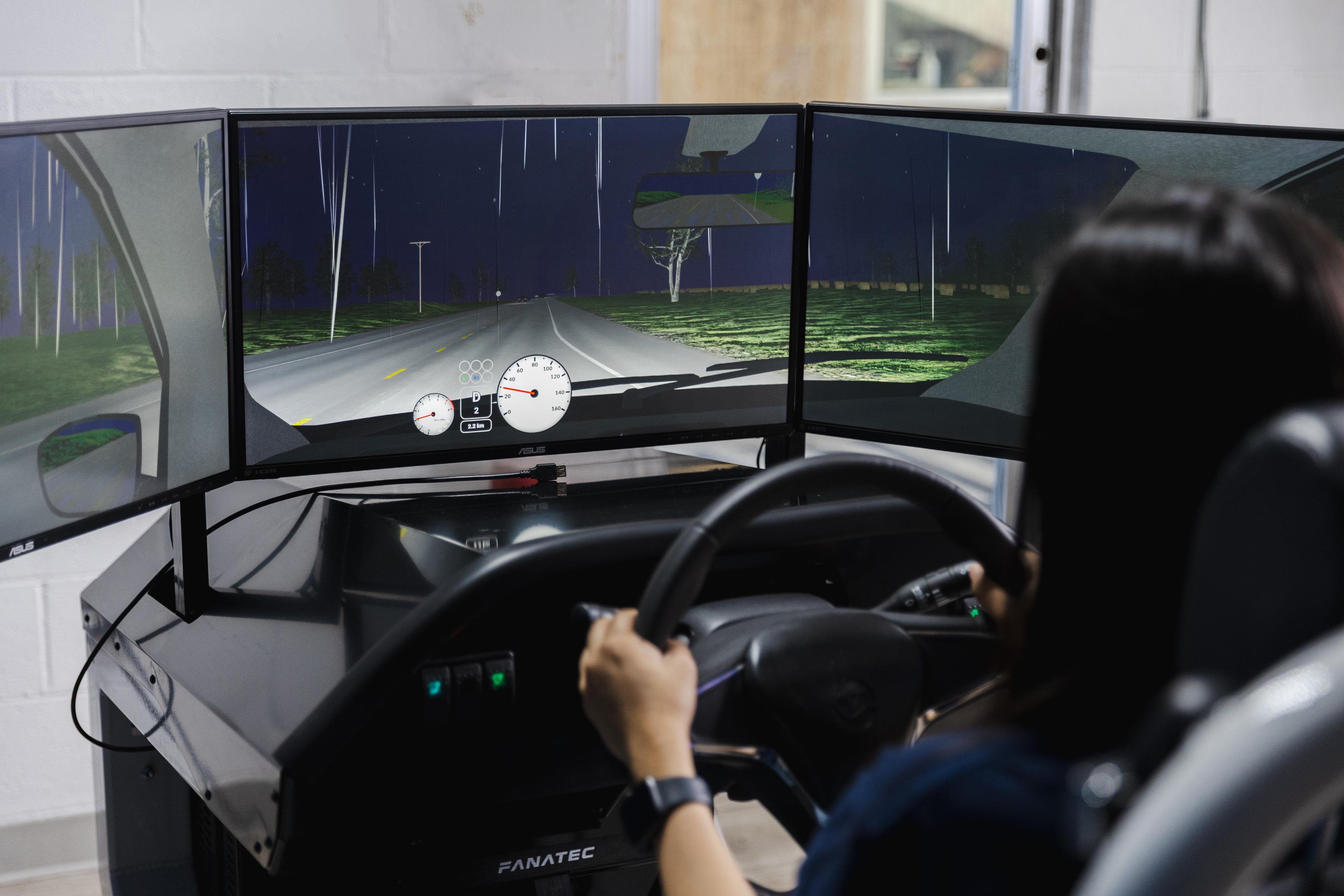

Comprehensive simulator for in-depth studies, with full-size driving console for an immersive simulation environment, with wheelchair compatibility.

Offers robust features and full-sized driving controls in a smaller footprint.

Offers robust features in a compact form factor, with gaming-type driving controls.

Software-only solution for integration with client hardware, offering the full power of STISIM Drive Research Suite at an entry level budget.

M4000-R

M3000-R

M2000-R

Form Factor

Console, with non-slip flooring and locking casters for portability

Desktop, portable, fits through standard doors

User-supplied desktop

Driver Displays

Three-screens, 27” with 135-degree field of view

Three-screens, 24” with 135-degree field of view

Single screen, 21” with 60-degree field of view

Operator Display

One 22” touchscreen

One 20” non-touch enabled

One 20” non-touch enabled

Steering Wheel Assembly

Proprietary OEM-Grade Tilt/Telescoping with Force-Feedback

Proprietary OEM-Grade with Force-Feedback

Commercial-off-the-Shelf, Consumer-Grade Force Feedback

Accelerator and Brake Assembly

Commercial-Grade Three-Pedal System, Configurable Left-Foot Accelerator

Commercial-Grade Three-Pedal System, Configurable Left-Foot Accelerator

Commercial-off-the-Shelf

Adjustments

Electric 4-Way Seat, Tile/Telescoping Wheel

Electric Height-Adjustable Fit

None

Accessibility Features

Separating Shell for Wheelchair, Optional Hand Controls, Optional Steering Spinner Knob

Wheelchair Accessible

None

Audio

High Quality, Realistic and Immersive Effects

High Quality, Realistic and Immersive Effects

Comercial-Grade, Realistic and Immersive Effects

Installation

On-Site

On-Site or Remote

Self-Installed
